Not one body but a route. The sorting station changes its marker protein rather than handing cargo to a different organelle, and the coat at the start of the route is not always a round cage.

View settings

ACTIVITY

Selected

Click a part of the copy or its label.

Stain

No stain on cyto.site's table names a part this copy draws.

Numbers

Where endocytosed material arrives

internalised receptor-ligand complexes and other endocytosed proteins arrive at the Rab5-positive early endosome, where they are sorted

general · review · Solinger JA and colleagues 2025, Biochem Soc Trans · source

What decides the fate of a cargo

a ubiquitin mark: marked cargo is bound by ESCRT-0 and ESCRT-I to begin degradation, and the rest is recycled back to the plasma membrane or to the trans-Golgi network

general · review · Solinger JA and colleagues 2025, Biochem Soc Trans · source

Maturation is a swap, not a handover

to degrade its cargo the early endosome matures into the multivesicular body, which requires the Rab5-to-Rab7 conversion mediated by the RABEX5-MON1/CCZ1 RabGEF cascade; cargo is packaged into intraluminal vesicles by ESCRT-III and Vps4, and the matured body fuses with a lysosome

general · review · Solinger JA and colleagues 2025, Biochem Soc Trans · source

The two halves are coordinated

loss of early ESCRTs gave enlarged Rab5-positive endosomes and blocked the Rab conversion, and reducing ubiquitinated cargo relieved it, so cargo corralling by the ESCRTs is upstream of the conversion and ESCRT-0 with ubiquitinated cargo may act as a timer for when it begins

not stated in the abstract; the gene names given, RABX-5 and SAND-1/CCZ-1, are the Caenorhabditis elegans ones · genetic loss of function with endosome imaging · Ott DP and colleagues 2025, EMBO J · source

The coat is conserved

clathrin coat proteins and their honeycomb lattice structures are highly conserved across mammals, yeasts and plants, and endocytic initiation requires similar protein domains in all three

mammals, yeasts, plants · review · Johnson A and colleagues 2024, J Cell Sci · source

The coat is not always a round cage

clathrin assembles into a range of membrane-associated architectures whose geometry, dynamics and function differ by compartment: curved coated pits at the plasma membrane and trans-Golgi network, extended flat lattices and plaques at the cell surface, coats on endosomal sorting domains, and tubular assemblies associated with three-dimensional migration

general · review of electron microscopy and ultrastructural work · Benoist M and colleagues 2026, Traffic · source

Not universal: membrane bending

the mechanisms that drive coated vesicle formation diverge between systems, and plant endocytosis occurs independently of actin, so assumptions about the mechanism carried from one organism to another should be made with caution

mammals, yeasts, plants · review · Johnson A and colleagues 2024, J Cell Sci · source

Not shown yet

Sizes and counts

no abstract read for this page gives an endosome diameter, a vesicle diameter, an intraluminal vesicle count or a number of clathrin triskelia with a method. Everything in the copy is proportioned for legibility, not measured.

How many polygons in the cage

the copy builds the coat by spreading points over a sphere and joining each to its nearest neighbours, which reads as a lattice. The pentagon and hexagon counts of a real clathrin cage are not taken from any source read here and are not claimed.

COPI and COPII

the other two coat systems of the cell are not shown and not described. No source was read for them for this page, so they are absent rather than guessed at.

Behind the copy

The endosomal system is a route rather than a single body. Material taken in at the plasma membrane arrives at the Rab5-positive early endosome and is sorted there: cargo carrying a ubiquitin mark is bound by ESCRT-0 and ESCRT-I and set aside for degradation, and the rest is recycled back to the plasma membrane or to the trans-Golgi network. To degrade its cargo the early endosome has to mature into a late endosomal structure, the multivesicular body, and that maturation is a swap of marker protein on the same body: Rab5 is replaced by Rab7 through the RABEX5-MON1/CCZ1 guanine nucleotide exchange factor cascade. The cargo destined for degradation is packaged into intraluminal vesicles by ESCRT-III and Vps4, and the matured body finally fuses with a lysosome. The two halves of that process are not independent: cargo corralling by the ESCRTs sits upstream of the Rab conversion, so ESCRT-0 and ubiquitinated cargo may act as a timer for when the conversion begins. The coat at the start of the route is also less uniform than the picture of a round cage suggests. Clathrin coat proteins and their honeycomb lattice structures are highly conserved, but clathrin assembles into a range of membrane-associated architectures whose geometry and function differ by compartment: curved coated pits at the plasma membrane and trans-Golgi network, extended flat lattices and plaques at the cell surface, coats on endosomal sorting domains, and tubular assemblies associated with three-dimensional migration.

source 1, source 2, source 3, source 4

Real pictures

Gallery and papers in the library

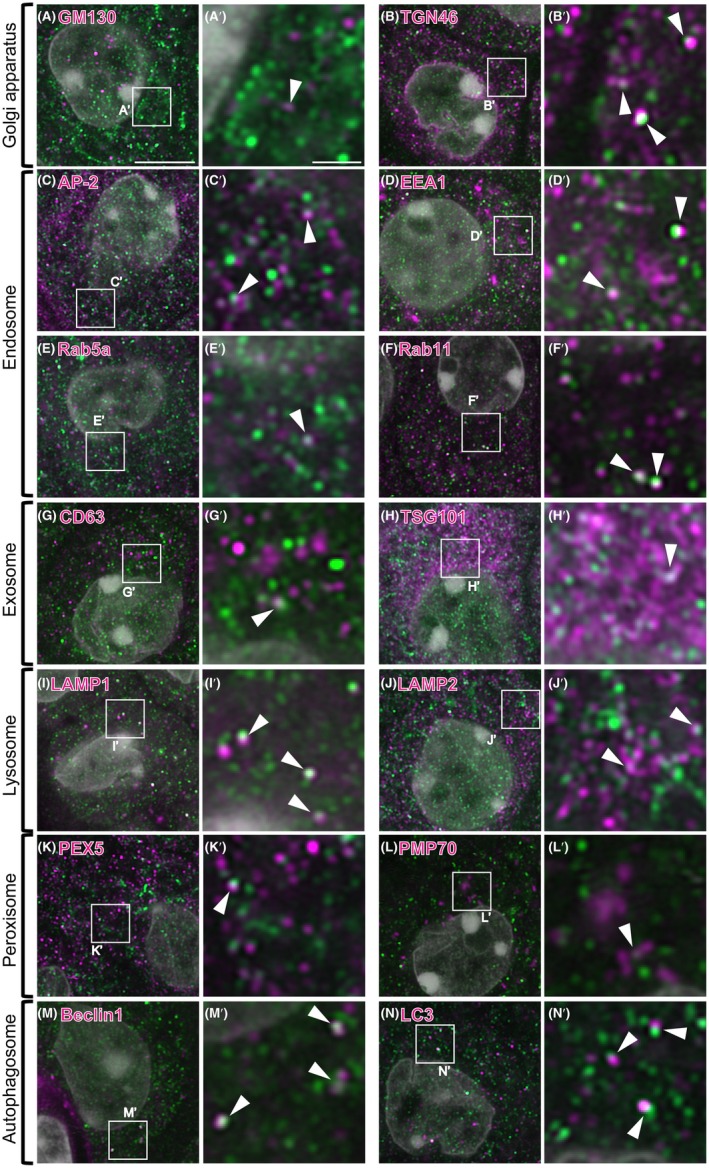

Panel D (EEA1): early endosome marker as magenta puncta, inset with arrowheads. composite of 14 immunofluorescence panels, mouse choroid plexus epithelial cells; magenta channel is the named organelle marker Ono, Shishido, Yamagishi et al 2026, The FEBS Journal, CC BY 4.0 · source · immunofluorescence, composite figure
